PCI

Slider Seat Mounts

  • Sale
  • $265.00
  • Regular price $295.00


Wondering how to mount that new race seat?
Pro Car Innovations Adjustable Seat Mounts takes the guessing game out of this install.
PCI has invested the research in order to create an ingeniously crafted safe design that’s
easily adjustable to accommodate multiple applications.

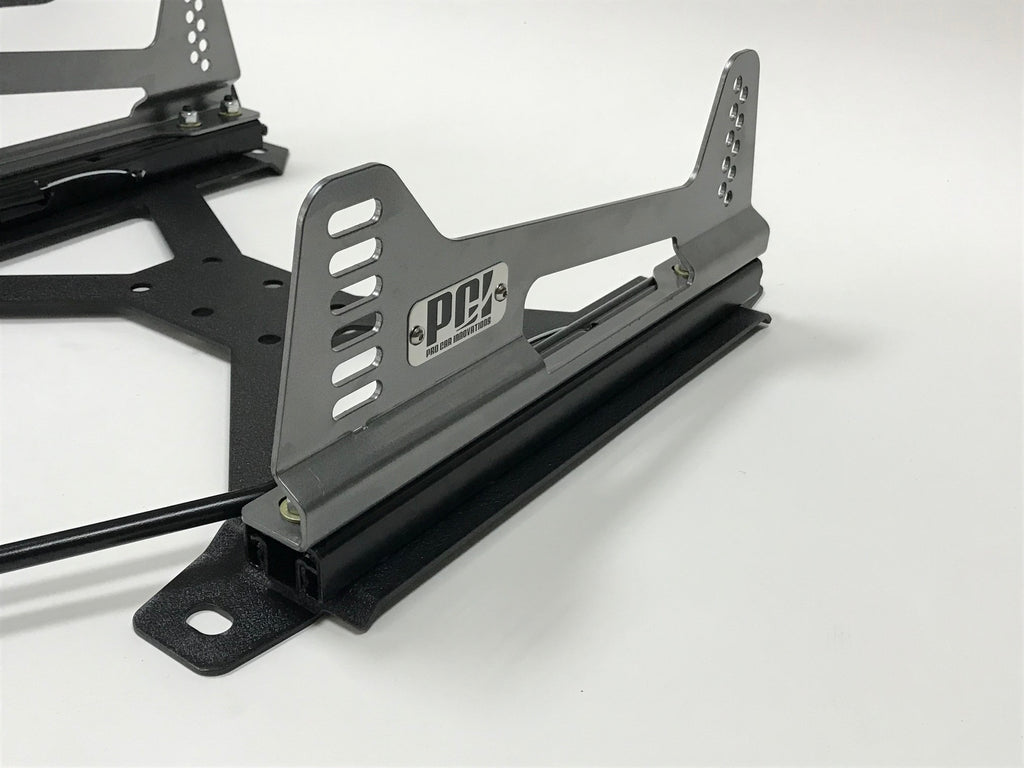

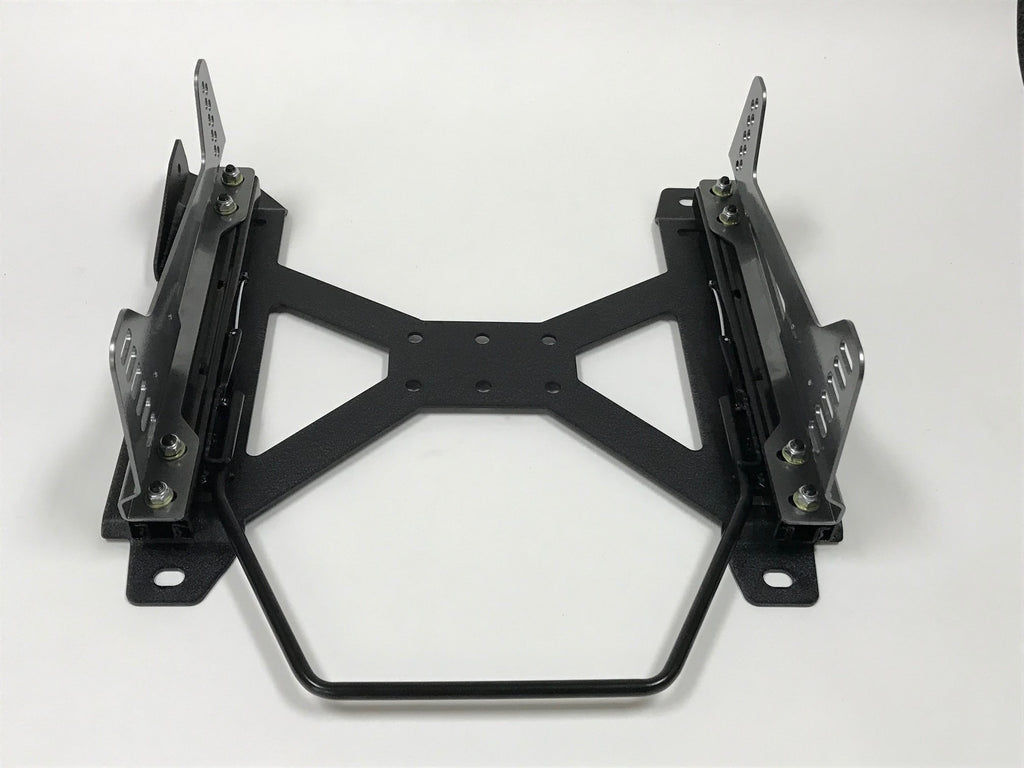

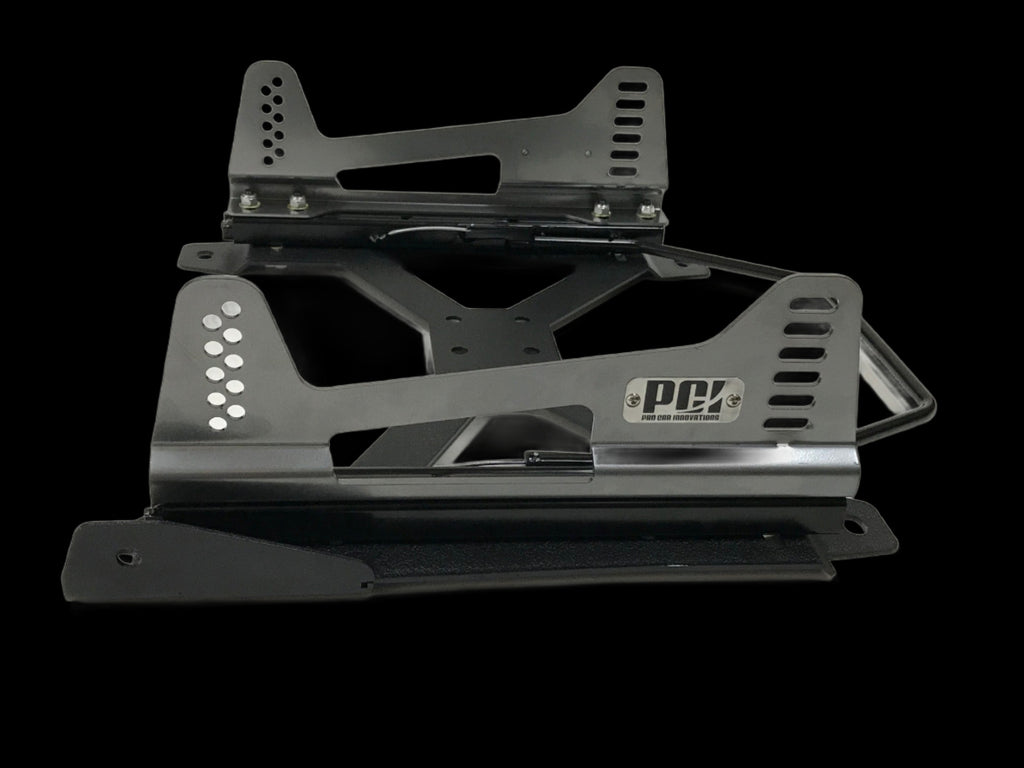

The PCI Racing Spec Seat Mount Has the largest range of adjustment and lowest possible seat
fitment of our seat mount line.

1/8” steel vs. 3/16” steel
Laser cut and cnc formed completely from one piece for strength, stiffness and weight savings.
With our design we can achieve the same strength if not more than 3/16″
steel by having bends and altering the shape to areas where increased strength and
stiffness is required. So don’t be fooled by thicker heavier steel is better. 3/16” steel is more
widely used for the simplicity of design and manufacturing. When you weld on the mounting legs
3/16″ steel is your only design option. Our mounts exceed the strength of the seat and floor
they’re bolted to.

Features:
Precision CNC laser cut and bent from one piece of 1/8” 3mm carbon steel
Multi way adjustability
PCI S1 high strength sliders, mounts to base with 4 bolts per slider
5 and 6 point sub belt mounting locations
Single tool adjustments with bottom locking hardware
Zinc plated hardware
Grade 10.9 8mm hardware
Powder coated base and side mounts
Stainless steel laser cut bolt on logo plates
1/4″ x1.25″ round black nylon side mount spacers included in kit

Benefits:
CNC bent one piece design allows for use of lighter 1/8” steel vs. heavy 3/16”
No modifications to any PCI seat mount components are required for installation
Uniquely designed for each car for the best possible fitment
Mounts to factory bolt locations with precise factory fitment
5 and 6 point sub belt mounting

Specs:
3mm carbon steel
CNC laser cut, CNC bent
Powder coated base and side mounts
Gun metal grey, or matte black side mounts
Zinc plated grade 8 hardware
14-3/4”­(375mm) to 17-1/2”(445mm) width adjustments (standard side mounts)
16”­(406mm) to 18-3/4”(476mm) width adjustments (wide side mounts)
9 5/8”­(245mm) range front to back adjustments
