Front Lower Spherical Control Arms 92-95 Civic / 94-01 Integra

  • Sale
  • $360.00
  • Regular price $395.00

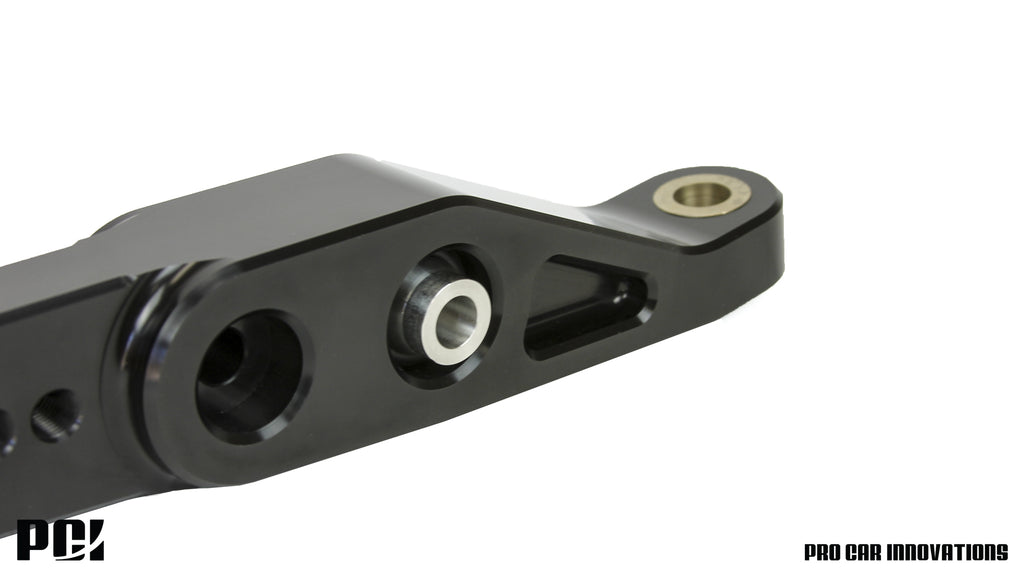

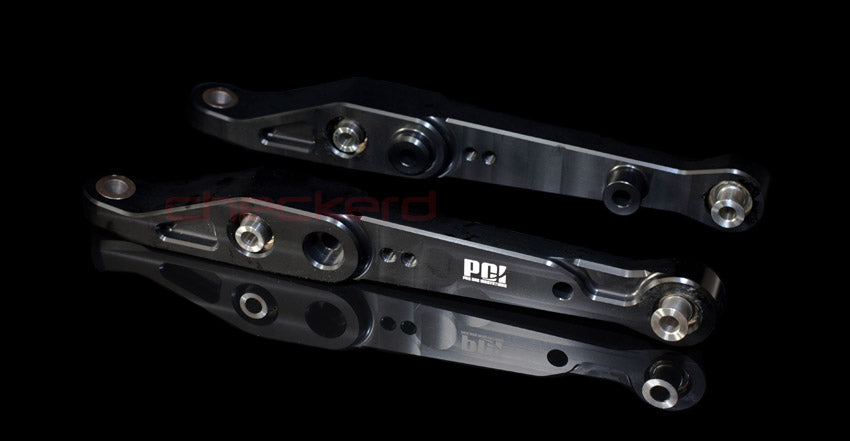

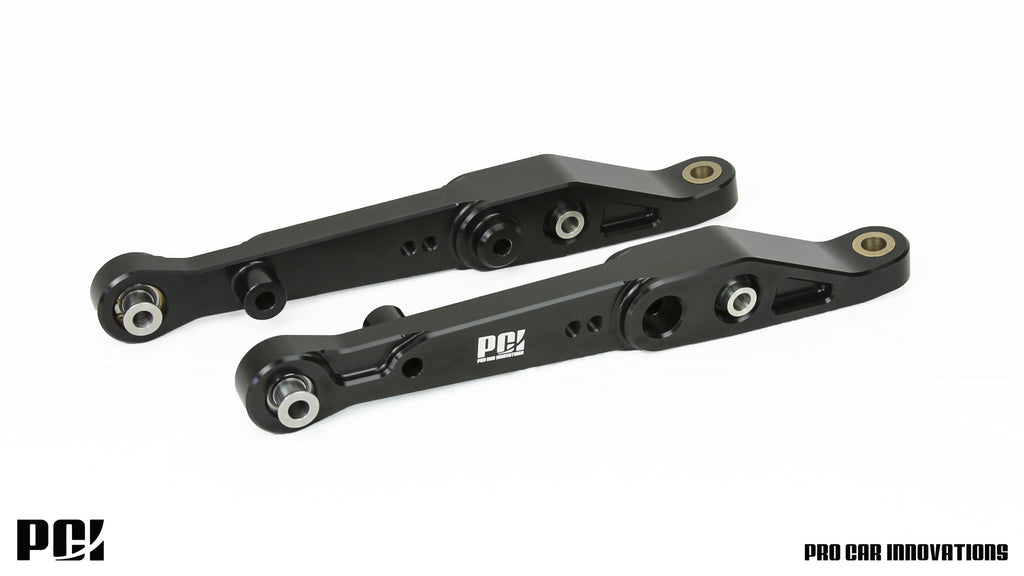

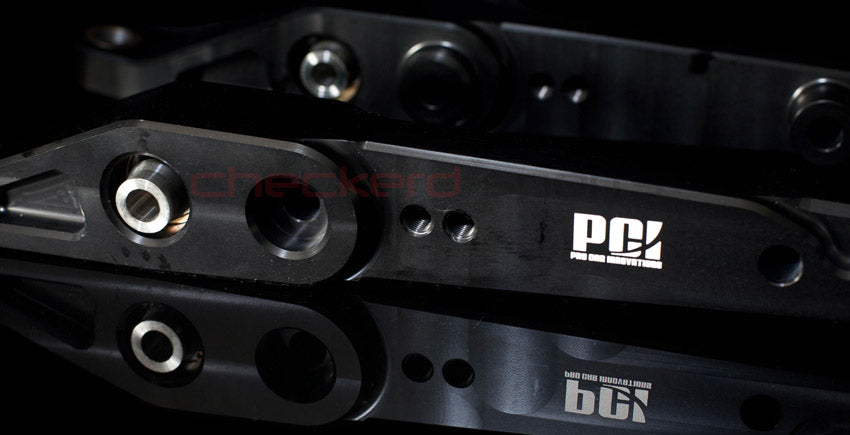

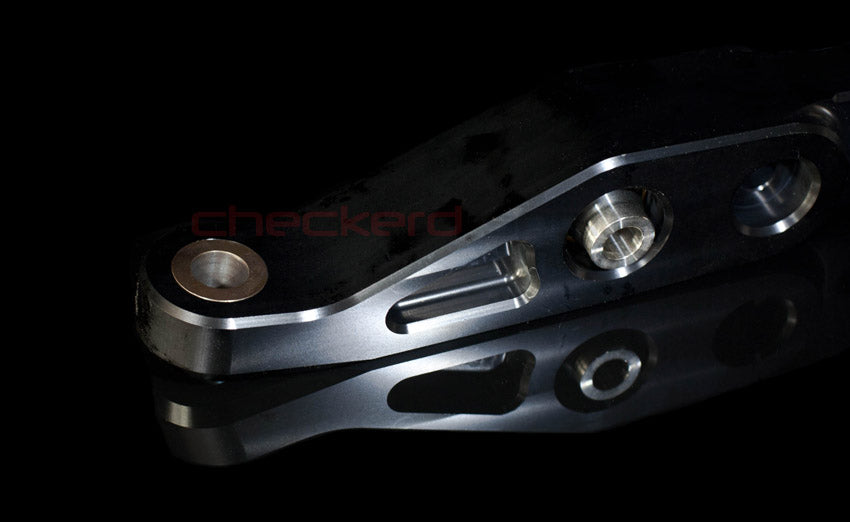

CNC machined billet 6061 T6 front lower spherical bearing control arms.

Designed for racing use and has similar strength to oem arms. Due to the ball joint angle correction this allowed us to significantly thicken high stress areas while still having the same arm to rotor clearance as oem.

Benefits from increasing caster from the lower arm verses the top arm is you will improve suspension travel by having the upper arm in a more centered oem location which will improve clearance and allow for more travel.

6061 T6 aluminum
304 stainless steel spacers
custom spec 5/8″ com10tss fully stainless spherical bearings

Increases positive caster up to 2 deg ***WILL NOT HAVE ANY NOTICEABLE INCREASE IN STEERING EFFORT***
Allows for less negative camber
Eliminates the need for traction bars
Ball joint angle correction for lower ride
Holds precise alignments since sphericals stay true and centered and don’t compress and sag over time.
Eliminates suspension deflection and geometry changes under load seen with rubber or urethane bushings.
3.2lbs compared to 6lbs stock
Extremely resistant to harsh weather, street and racing conditions
Low cost fully rebuildable

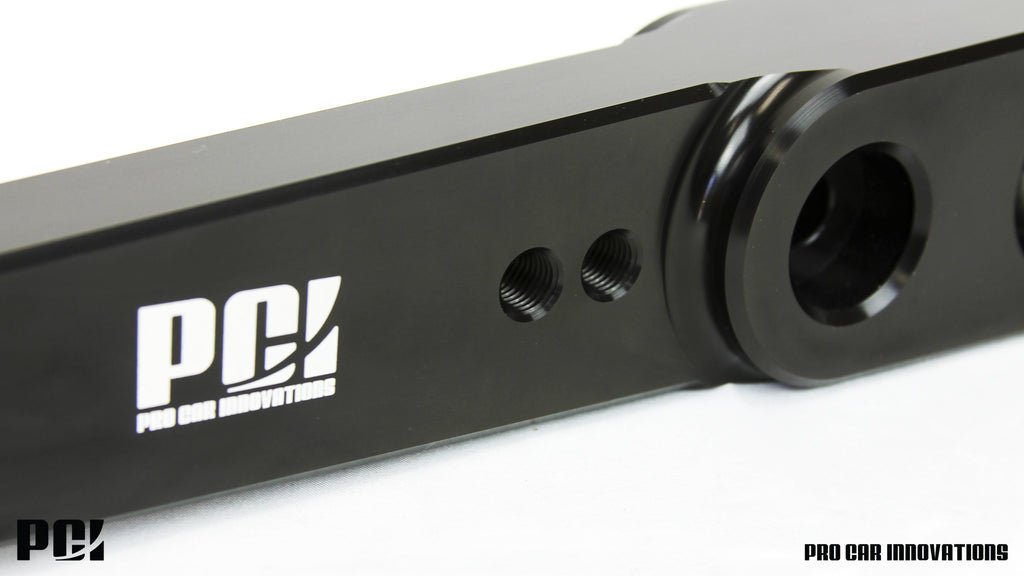

M10X1.25 threaded sway bar holes for after market sway bars using spherical end links.   **can still use oem sway bar bar mounting locations**

92-95 Civic
94-01 Integra
