CLEARANCE ITEM
AP Racing / CS Big Brake Kit. This 4 piston is a perfect setup for street and track duty.
- Features AP Racing CP9440 4 piston calipers
- 330 x 28mm rotor
- Fully-floating 2-piece rotors, with directional ventilation vanes for optimal cooling performance. Runs up to 30% cooler than O.E. rotors
-
Hard anodized calipers and rotor hats for increased resistance to wear and discoloration under extreme track conditions
- Confidence-inspiring heat resistance during extended sessions. Optimum bite, modulation characteristics, thermal stability, and durability
- Recommended usage: Street / Track

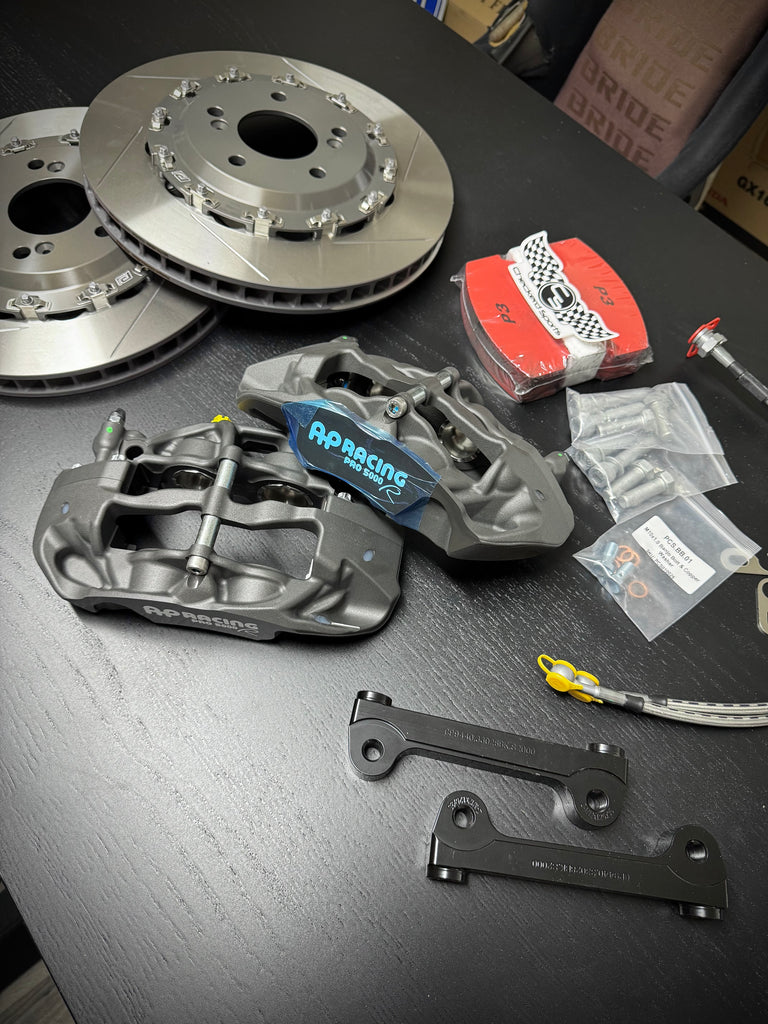

INCLUDES:
-
One pair of AP Racing CP9440 4 piston calipers
One pair of fully-floating 2-piece rotor assemblies with hard anodized 6061-T6 aerospace grade aluminum hats, stainless steel bobbins. - One set of Paragon P3 "Street/Track" semi-metallic brake pads (manufactured by Winmax Japan, other compounds available at additional cost)
- One pair of caliper mounting brackets and all necessary hardware
- One pair of Goodridge DOT approved stainless steel braided brake lines
FITMENT:

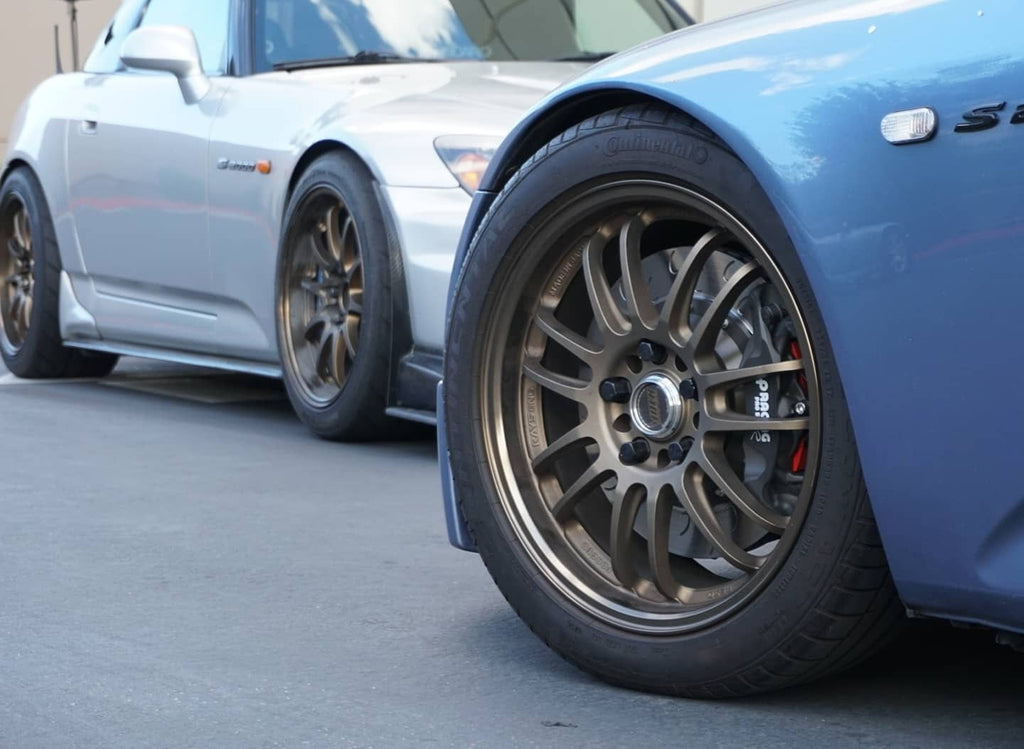

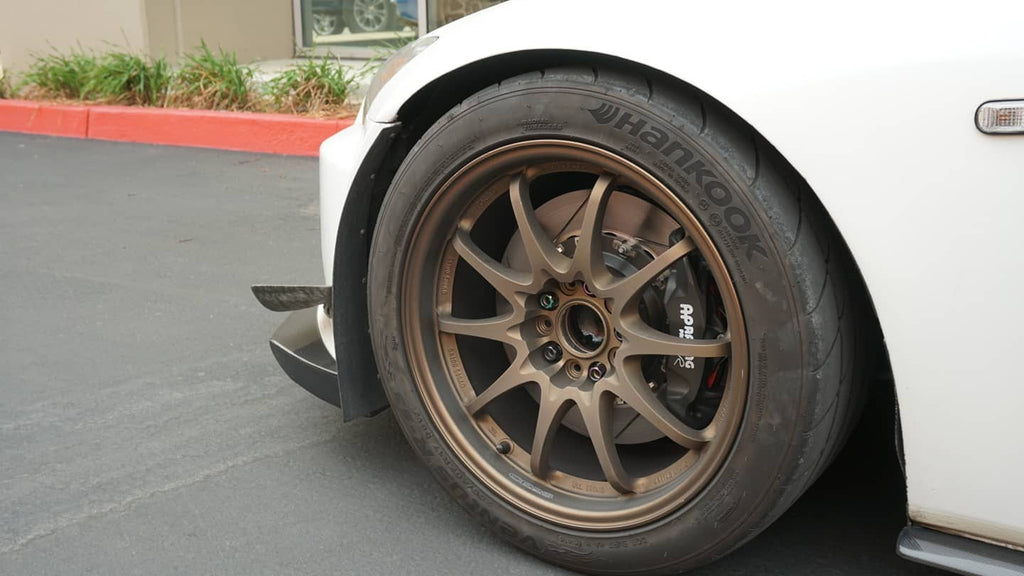

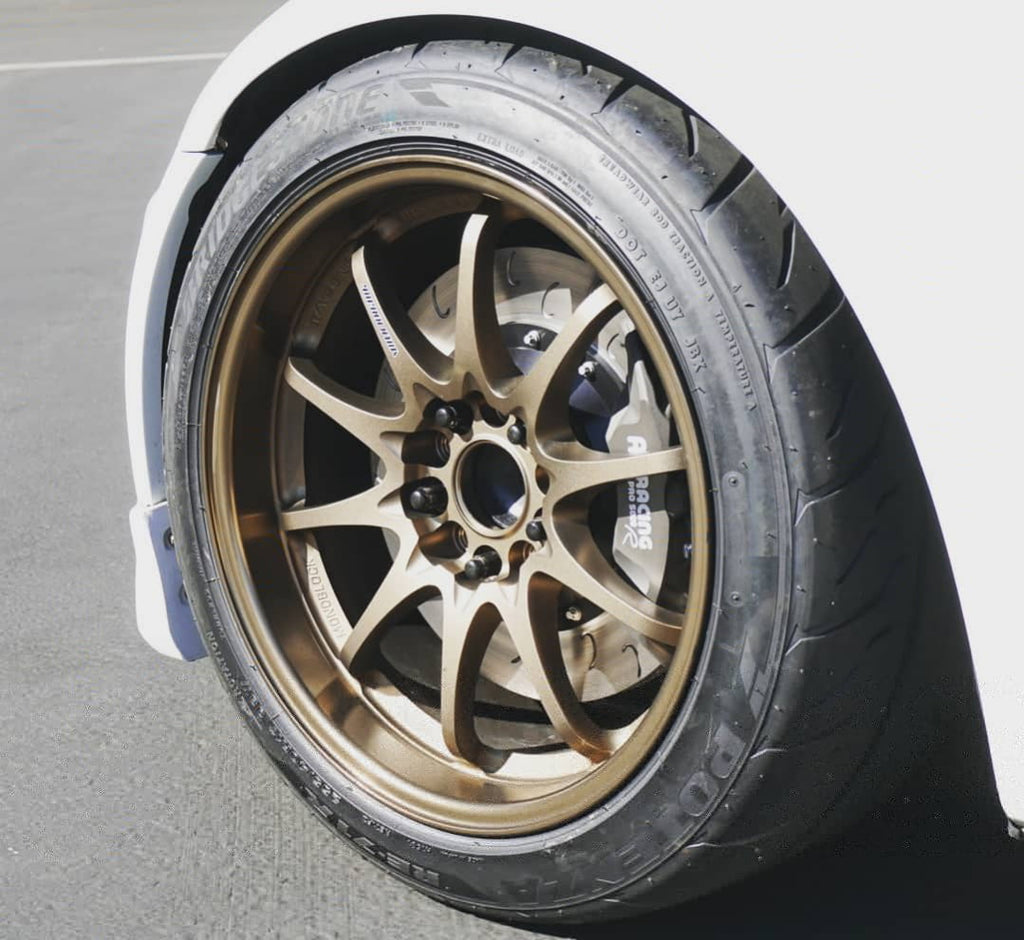

2000-2009 Honda S2000 (AP1 / AP2) Front
***Please verify wheel fitment / clearance before ordering. All big brake kits are custom made/packaged to order, and cannot be returned.
**330mm brake kits generally require 17" or larger wheels. Fitment varies due to different specs / wheel design. Verify fitment with wheel fitment template.
4 PISTON CALIPER:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 152.0mm x 44.0mm centres.
- Suits Ø330.0mm or 315.0mm x 28mm thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
FLOATING 2-PIECE ROTOR:
- Floating 2-piece design allows thermal expansion of the rotor while minimizing deformation and ensuring the rotor is self-centered with the pads
- Superior braking and cooling performance
- Features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking
- Made of CM-250 special formulated high carbon alloy cast iron. Allows for an optimal bite, thermal characteristics, high-temperature strength, and durability
- Heat treated to release stress in the rotor to avoid deformation and vibration
- State-of-the-art CBN surface machining to ensure better break-in with new brake pads
- Excellent thermal capacity. Allows the rotors to absorb and dissipate heat more efficiently and help reduce chance of brake fade
- Replacement rotor rings available at competitive price
- Slotted rotor face pattern improves brake consistency by constantly cleaning the contact surface and dissipate heat generated, and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface.
CURVED DIRECTIONAL VENTILATION VANES:
Features directional ventilation vanes to create suction and turbulence, and guide cool air through the rotor to achieve better heat dissipation and increased resistance to cracking under harsh track conditions. Each rotor is left or right side specific, and the ventilation vanes are optimized to spin in a particular direction to pump the maximum amount of cool air through the rotor. This design allows the rotor to run up to 30% cooler than O.E. rotors and increases cooling efficiency by up to 30% over standard 1-piece units. Brake fade and judder are minimized during extended sessions. This means the brake system can withstand heavier track usage and provide consistent braking performance lap after lap.
HARD ANODIZED ALUMINUM HATS:
- CNC machined from lightweight 6061-T6 aerospace grade aluminum
- Unsprung weight reduction
- High strength and durability
- Hard anodized to increase resistance to wear, corrosion, and discoloration
FLOATING BOBBINS AND MOUTING SYSTEM:
Utilizes T-Bobbin rotor to hat mounting system to allow "float" in both radial and axial directions, and minimize brake judder. The high quality stainless steel hardware are corrosion resistant which allows secure mounting, and smooth expansion and contraction throughout heat cycles. Anti wear clips (McLaren spring clips) are utilized to slightly pre-load the rotor assembly and minimize rattling noise.
CALIPER MOUNTING BRACKETS:
CNC machined caliper mounting brackets to ensure superior strength, durability, and secure mounting of calipers to knuckles.
PARAGON BRAKE PADS:
- Manufactured by Winmax Japan
- Superior stopping power and modulation
- High fade resistance
- Consistent performance under high temperature conditions
- Compounds available for street, street / track, and dedicated track applications
- PA055 caliper uses a common pad shape, with compounds readily available from various manufacturers
GOODRIDGE STAINLESS STEEL BRAIDED BRAKE LINES:
- Superior durability. Abrasion and corrosion resistant
- Allows more responsive and firmer pedal feel
- DOT / TÜV certified
